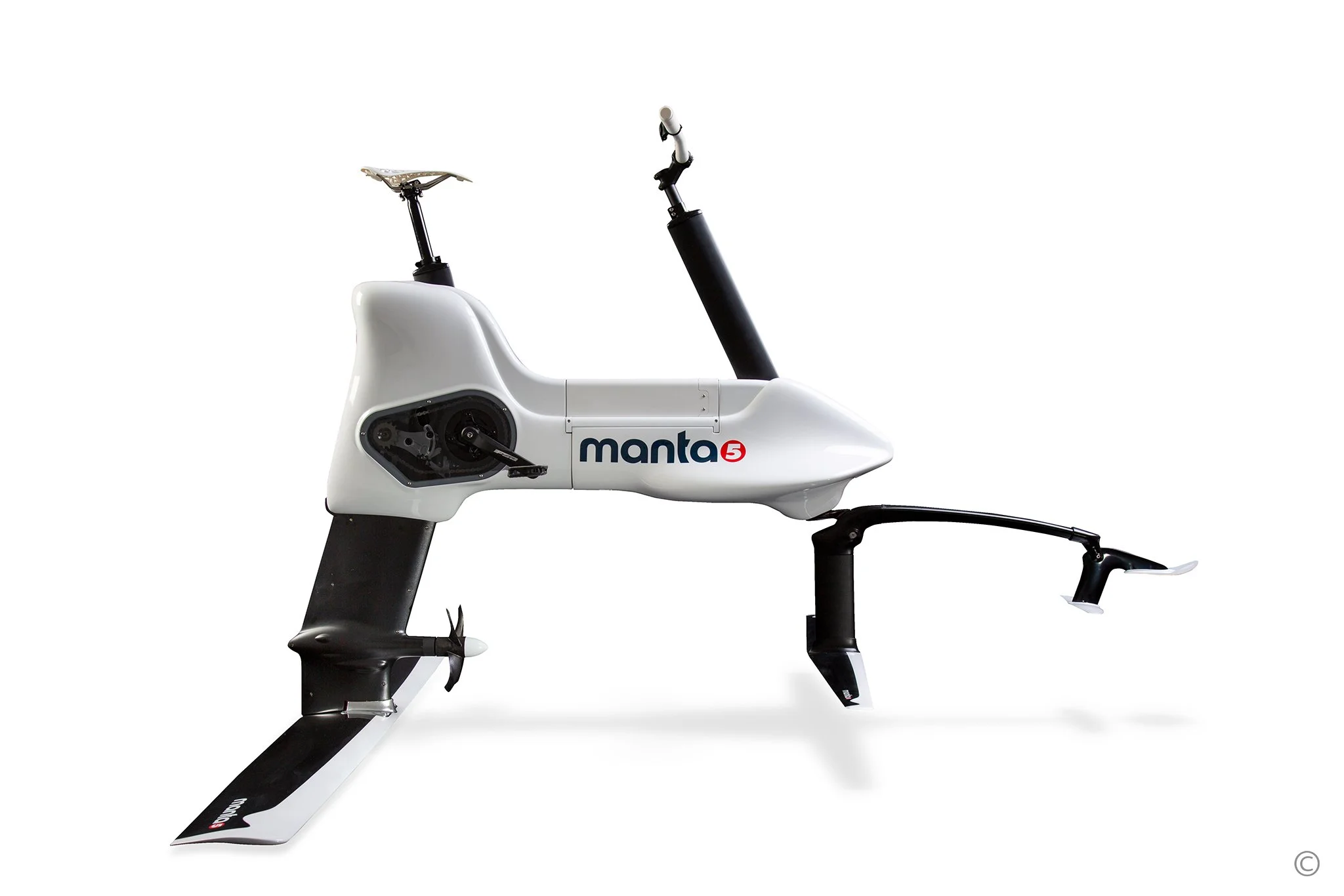

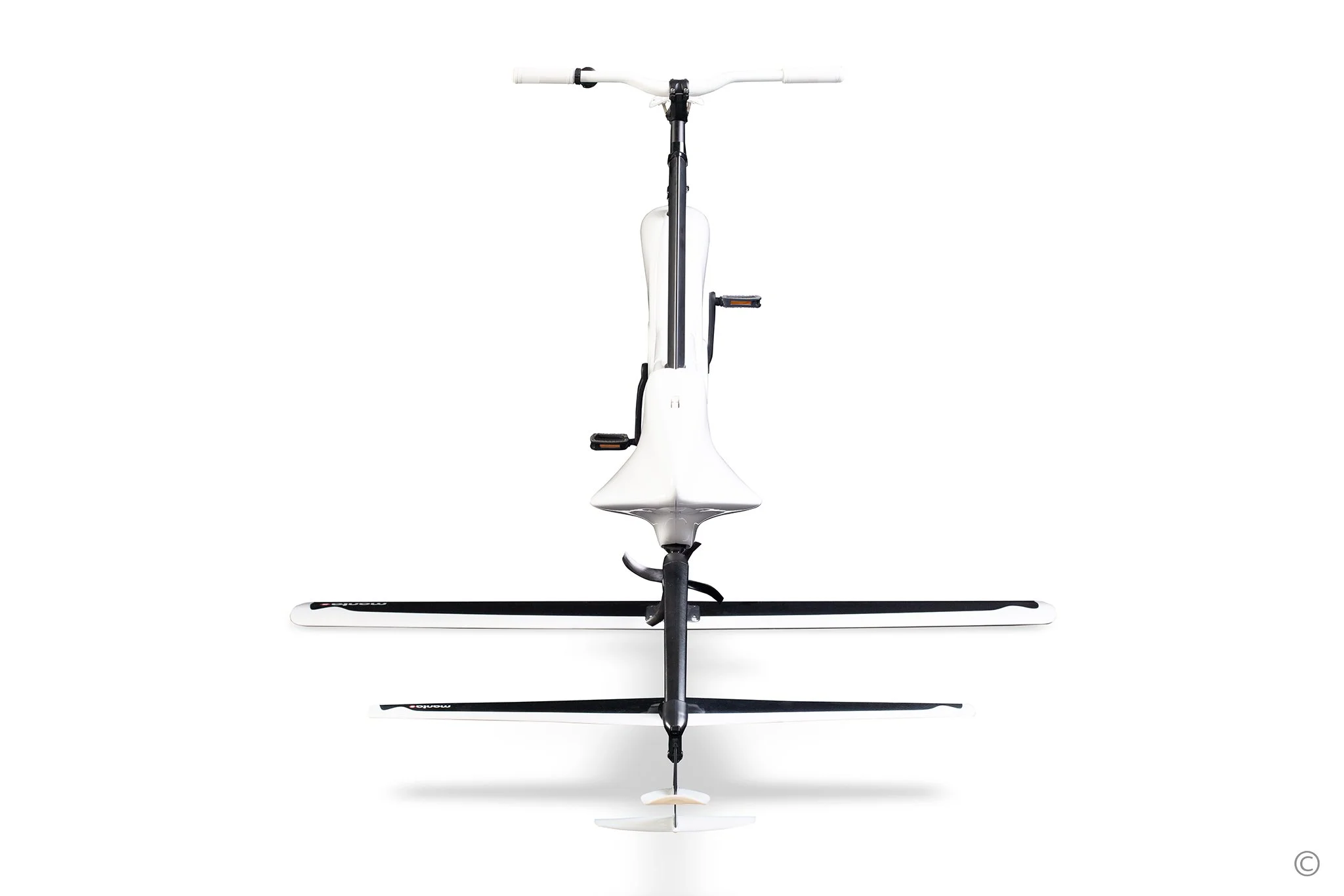

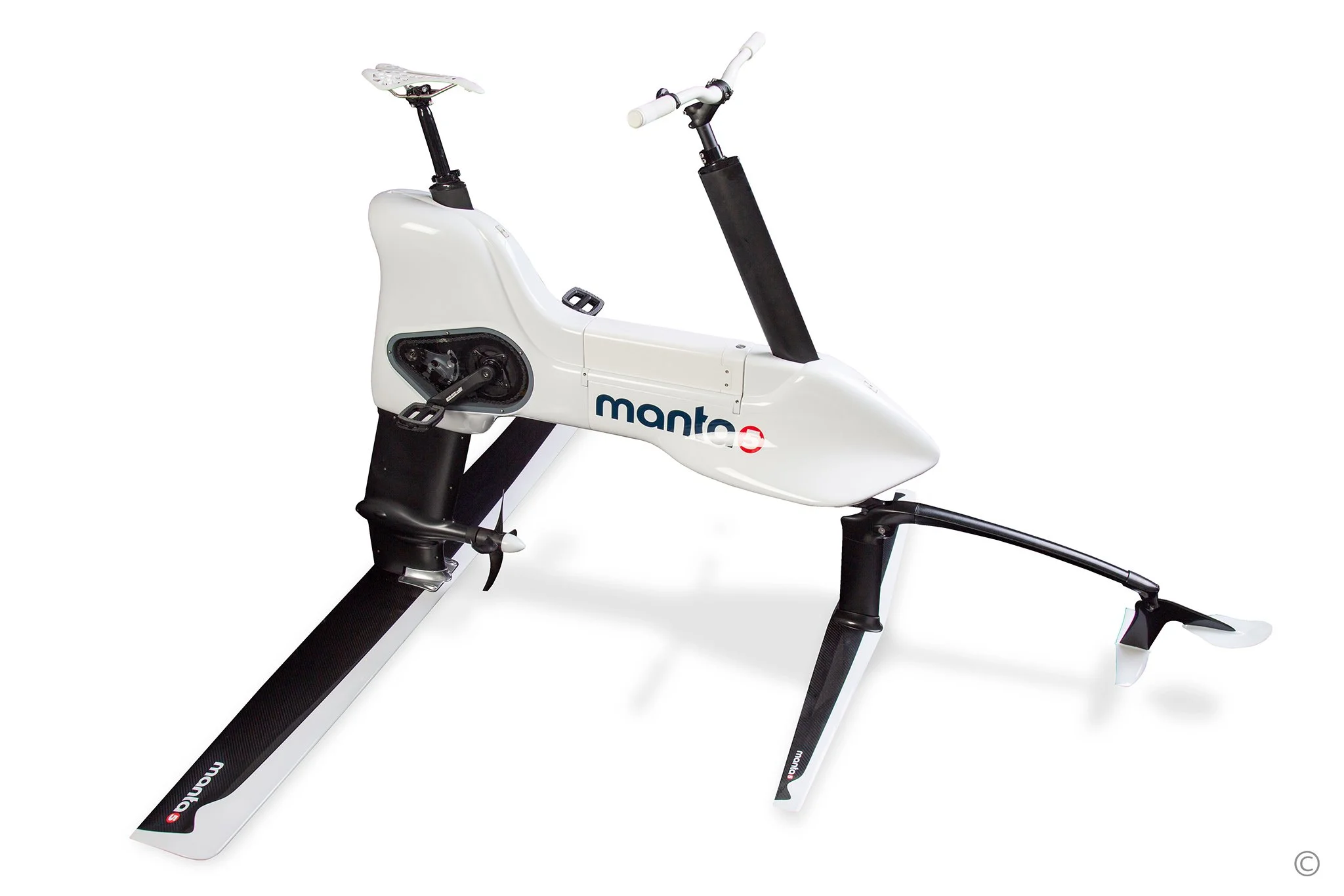

Manta5 XE-1 Hydrofoiler
Manta5 XE-1 Hydrofoiler
A new biking on water community exists and it’s growing…
In the open water you might look over your shoulder for traffic, there is none. No noise, no pollution, no lanes, no shouting, just space.
Suitable for a wide range of fitness levels, with the Manta5 Hydrofoiler XE-1 riders can freely explore ocean coastlines from their mothership, train along waterways, or cruise lakeside with friends and family.
Riding a hydrofoiling bike on water is ideal for learning a rewarding new skill, getting active and for developing your cardio fitness out in the fresh air. Whilst kayaking or paddleboarding will work out other muscle groups, you can use the power in your legs to get you a long way on the water. Whether you are looking for a long-distance workout or a fast burn, you can be confident that with the Manta5 you will get the training and experience you desire.
The Hydrofoiler XE-1 features 7 levels of variable electric assist. Riding on the lower level dramatically extends your range and duration of the ride up to 4 hours. An effective cross training tool, a rider can adjust the level of assist mid ride giving them a break when they need it. When riding on full assist you can maintain foiling speeds just by lightly rotating the pedals.
When adventuring, you might decide to pedal down undiscovered waterways. Whether you are tackling waves, searching for wildlife or simply exploring at leisure. The Manta5 is sleek, quiet and well-equipped to take you on your next expedition. Our planet is two thirds water – time to seek out its rich diversity and glorious lakes, rivers and secluded beaches. Whether alone or with friends, rediscover your childhood joy of simply jumping on your bike and heading off, not sure what you will find, but alive with the spirit of discovery.
Price: From £6,724 (VAT Not Paid)
YOUR PURCHASE WILL EARN A LUXREWARD
YOUR PURCHASE WILL SUPPORT GOOD CAUSES VIA LUXGIVEBACK
Technical Specification
Body
Weighing a total of 67 lbs/30.5 kg (including motor and battery) the Hydrofoiler XE-1 is as light weight as industry standard eBikes.
Nb- Total bike weight may vary based on production components
Chassis and Gears
Aircraft grade TIG welded 6061-T6 aluminium frame
Hybrid drivetrain with industry standard components for easy replacement
Buoyancy modules designed to streamline the Hydrofoiler both above and below water
Easy maintenance crank-set, gearbox and propeller/shaft sub-assembly
Hydropack Battery
Fully submersible IPX8 rated battery housing system.
70 cell lithium ion pack
36 volts of power capable of supplying 22 amps
Easy access charging connector with a 4 hour charge time
Battery ride time 1-4 hours dependant on level of electric assist
GARMIN® eBike Remote includes on/off, and electrical assist level selection (up and down)
Nb-Estimated battery run time may vary depending on the weight of the rider, weather conditions, and level of assist.
Electric Motor
IPX8 rated electric motor
460 watts of pedal assist power
Specially designed cooling fins, integrated RPM and double pedal torque sensors to ensure optimal motor temperature
7 electrical assist levels
‘Front Tiller’ - Nose of Bike
Front tiller pivots automatically to adjust ride height to suit different water conditions, ensuring optimal planing levels, and rider efficiency.
Carbon Fibre Hydrofoils
Foil tip design minimises drag and extends effective wingspan
Rear wingspan measures 2m. Front wing, 1.2m. General purpose foils. Suitable for lakes, rivers, and ocean
Standard Features
Variable pedal assist can be dialled up or down to fit your needs.
Top speed of up to 21 kph (13 mph or 11 knots): similar to Olympic single scull rowers. Modular design for quick assembly and transport to and from the water.
All Manta5 Hydrofoiler XE-1’s come standard with the GARMIN® eBike Remote. Rugged, compact and lightweight, riders can cycle between the 7 levels of motor assistance. With multiple compatible devices (30+) riders can also make use of Manta5’s free Datafields on the Connect IQ Store
Additional Optional Accessories
XE-1 Hydropack Battery: IPX8 waterproof battery housing system. 36 volts of power capable of supplying 22 amps
XE-1 Transport Wheel: to assist transportation of the water bike over land
XE-1 Storage Shoe Mount: for mounting and storing the water bike on the wall of a garage
XE-1 Foil Bag: for protection of the foils when in transit
Zarges Battery Travel Case: Fitted with Cirrux non-flammable cushions. Suitable for 2 x batteries the Zarges case provides compliance to IMDG, IATA, FAA and 49CFR requirements
Aquabanas X Manta5 Floating Launch Platform: Easy launch floating platform ideal for launching new riders
34T Chain Ring (Learner Chain Ring): Improves launch power for heavy riders, cadence, and endurance of XE-1
Safety recommendations
Users must check the area of use and follow all relevant safety advice. This hydrofoiler is for competent swimmers only and users should always wear an appropriate helmet and buoyancy aid/impact vest. Helmets, buoyancy aids/impact vests and other appropriate clothing or wetsuits should be professionally fitted for the individual user and are not included.
DETAILS
Hull Type Hydrofoil / Foiling
Hull Material GRP
Passenger Capacity 1
ENGINES
Engine 1x Custom
Engine Year 2022
Engine hours 0
Fuel Electric / Solar
DIMENSIONS
Length Overall (m) 1.93
Beam (m) 2.00
Displacement (kg) 30.5
About the Manutacturer - Manta
Using the same innovative technology as the America’s Cup sailing boats, the Hydrofoiler XE-1 opens up a whole new cycling frontier.
The founder of Manta5, Guy Howard-Willis has always had a passion for cycling and watersports. That passion drove him and his son to co-found a business that eventually grew to become New Zealand’s largest outdoor and adventure sports retailer.
Much like a boat can be likened to a car, a jet ski to a motorbike, the intuitive cycling experience had yet to be achieved through existing pontoon style bikes. The distinct lack of options had Guy wondering whether or not the same hydrofoil technology that lifts America's Cup yachts out of the water could be applied to replicate the intuitive cycling experience on a whole new ‘water-terrain’.
While the concept of a hydrofoiling bike appeared simple on paper, it’s taken some of the best engineering minds and years of commitment to make Guy’s vision a reality.
The goal was always to stay true to an authentic cycling experience, but when it comes to the physics, the Hydrofoiler is more an aeroplane than a bike. Just like designing a plane, the team had to understand and design for the subtle relationship between rider ‘payload’ weight vs lift from the hydrofoil ‘wings’. Couple this with understanding the required thrust from the propellor, the rider, and the motor to overcome the overall drag - when stationary in deep water and at high speed - was no easy feat. Years were spent understanding and optimising the relationships between these forces.
Upon achieving a proof of concept the team’s focus turned to creating a high-quality, manufacturable product that stayed true to Guy’s vision. To keep it lightweight, safe, modular and serviceable. The Hydrofoiler XE-1 is now making its mark in oceans, lakes and waterways around the world.
